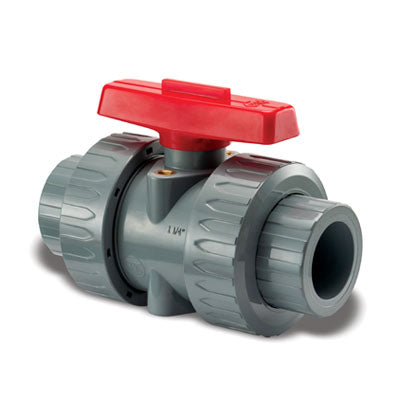

Type 26 True Union Ball Valves
- SERIES: Type 26
- SIZES: 1/2” to 4”

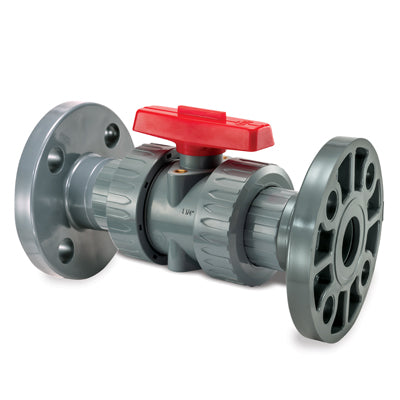

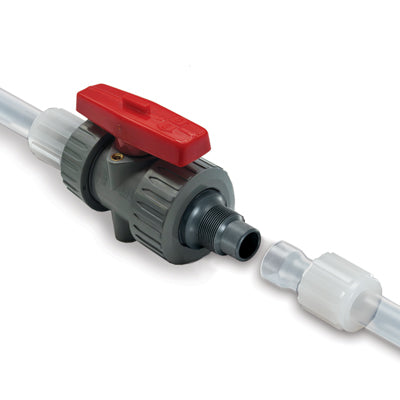

- ENDS: Socket, Threaded, Flanged or ChemFlareTM
- SEATS: PTFE
- SEALS: EPDM or FKM (Viton®)
- Description
- Downloads
Chemline’s Type 26 True Union ball valve is a full port, fully blocking valve, pressure rated at 230 psi (16 bar). This heavy duty CPVC industrial valve is used in many chemical plants. Actuation is easy using the ISO standard mounting kits. An integral base mounting pad is provided for panel mounting. Valves are certified under NSF/ ANSI Standard 61 for contact with drinking water.
✓ Fully Blocking Downstream union nut may be safely disassembled for piping maintenance while valve is closed off under full pressure
✓ Double Stem O-Rings Provide for high degree of safety on hazardous fluid applications ✓ 230 psi Working Pressure
✓ Easy to Actuate Electric or pneumatic actuators may be easily mounted using ISO standard mounting kits
✓ Panel Mountable Threaded inserts in valve base allow valve to be securely anchored to panel or support
✓ NSF Valves are certified to NSF/ANSI Standard 61 for contact with drinking water
