Type 25 True Union Ball Valves
- SERIES: Type 25
- SIZES: 1/2” to 2”

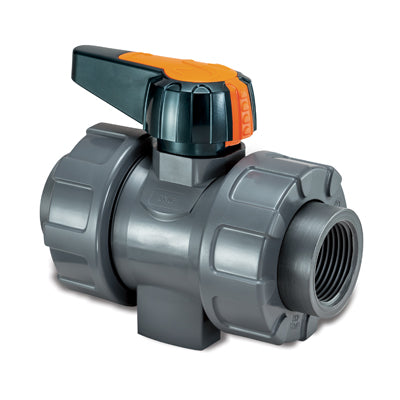

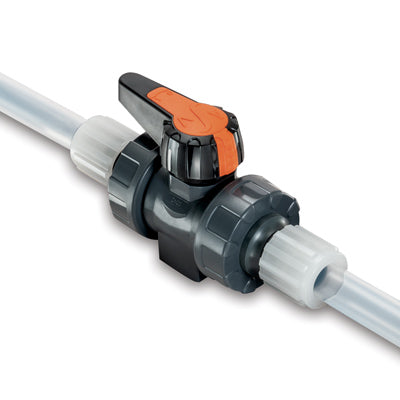

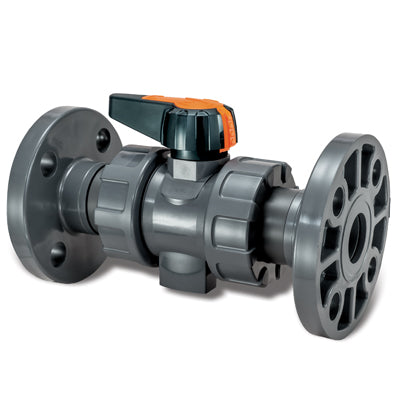

- ENDS: Socket, Threaded, Flanged, Butt1 or ChemFlareTM
- SEATS: PTFE
- SEALS: EPDM or FKM (Viton®)
- Description
- Downloads

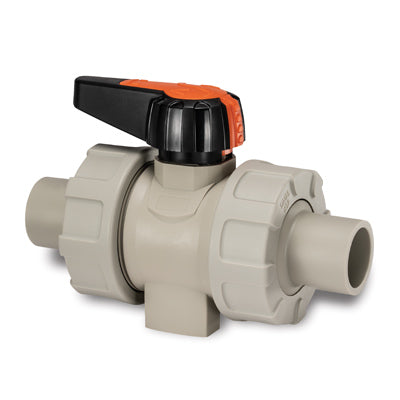

The Chemline Type 25 is a fully engineered rugged design True Union ball valve for industrial services. The available materials (PVC, PP and PVDF) cover a wide range of chemicals and application processes. Manual locking handles are standard. A full selection of options include pad-lockable handles, base mount for panel mounting, all-PVC stem extensions, quick install actuator mounting kits, a full range of actuation and more.
✓ 230 psi Working Pressure 230 psi for PVC valves 150 psi for PP and PVDF valves
✓ Fully Blocking Downstream union nut may be safely disassembled for piping maintenance while valve is closed off under full system pressure
✓ Double Stem O-Rings Provide for high degree of safety on hazardous fluid applications
✓ Compact Space saving ISO short body length
✓ Ergonomic Handle Easy to operate Manual thumb lock Can indicate flow direction
✓ Easy to Actuate Space saving ISO short body length

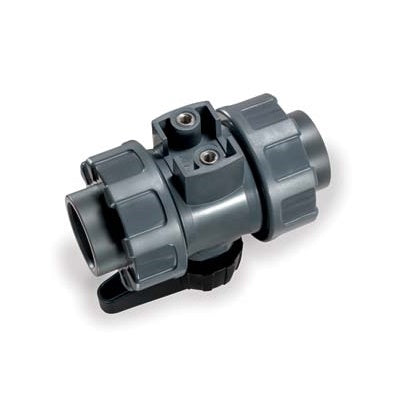

✓ Panel Mountable Electric or pneumatic actuators may be easily mounted using ISO standard mounting kits
